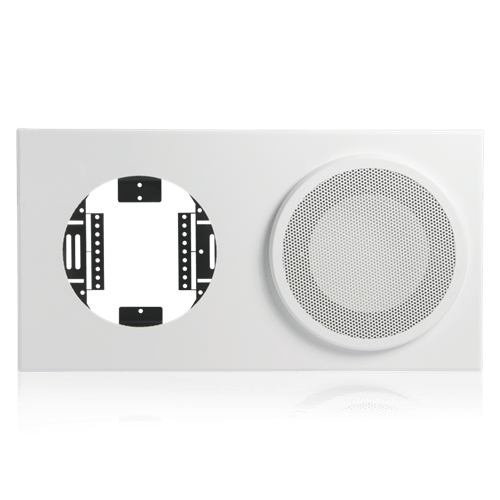

Economical clock/speaker baffle assembly features a CRS grille and trim ring mounted to an 18-gauge CRS panel with cutouts for mounting an 8" dia. speaker (order separately). The
830 Series mounts into position using a double-action torsion spring system to provide a hardware-free appearance. Models include a black gasket for concealed mounting of an 8" dia. (203mm) speaker and a universal clock mounting bracket for installation of almost any 8" or 9" dia. analog clock (by others). The panel, grille, and trim ring components are finished in a white epoxy. Assemblies can be recessed or surface mounted using 194 Series enclosures
FEATURES- Can be Recessed or Surface Mounted Using 194 Series Enclosures
- Mounts into Position Using a Double-Action Torsion Spring System to Provide a Hardware-Free Appearance
- Panel, Grille, and Trim Ring Components are Finished in a White Epoxy
SPECIFICATIONS
Clock Hole Size - 8.75"
Compatible Enclosures - 194-89, SM194-89
Height - 14" (35.56 cm)
Width - 26 1/2" (67.31 cm)
Shipping Weight - 8.00 lbs (3.63 kgs)
