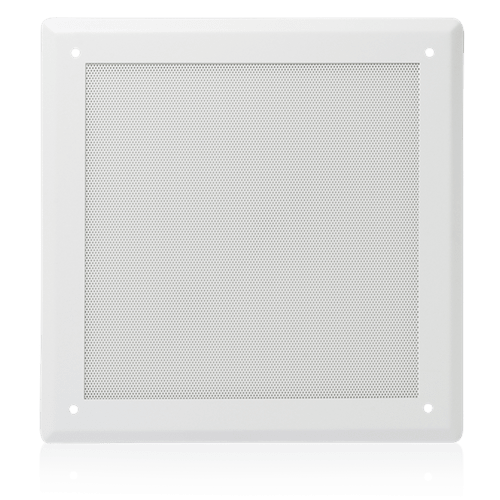

Model 170-8A. Popular ceiling baffle features a die-formed frame with shallow bevel and perforated screen. Separate speaker mounting subplate (20-gauge CRS) provides extended "no leak" bass response. The design offers screw-mount installation with concealed speaker mounting studs and accommodates standard 8" (203 mm) dia. speakers. Unit is of two-piece CRS construction (18-gauge trim, 22-gauge perforated grille) with textured white epoxy finish.
FEATURES- Attractive Models Feature Concealed Loudspeaker Mounting Studs
- Heavy-Gauge CRS Construction Guards Against Vibration and Rattle
- Suitable for Multi-Purpose Ceiling and Wall-Mount Applications
SPECIFICATIONS
Speaker Size - 8
Height - 13 1/2" (34.29 cm)
Depth - 1/4" (0.635 cm)
Shipping Weight - 3.50 lbs (1.59 kgs)
Safety Listed - 1480, 2043
